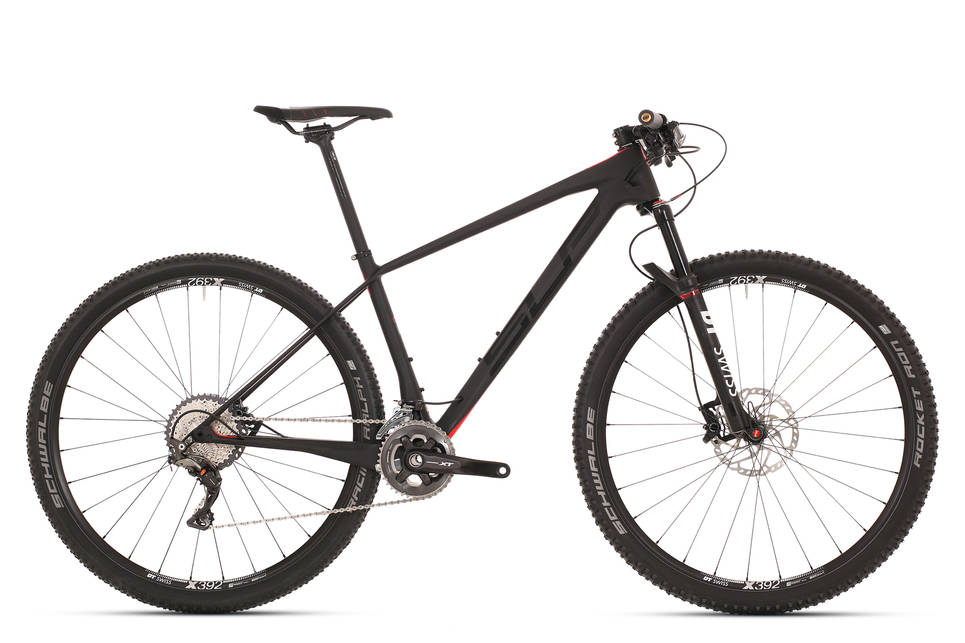

FRAME
Carbon MTB Race BF-1601
TRAVEL (F/R) (MM)
100/100mm
FORK
DT Swiss OPM O.L. Tapered, 15mm, remote LO
SPRING/DAMPING SYSTEM
Air NCS/O.L. + remote LO
CRANKSET
Shimano XT FC-M8000 Hollowtech II 34T
REAR DERAILLEUR
Shimano XT RD-M8000-D GS Shadow Plus
SHIFTER
Shimano XT SL-M8000 RapidFire Plus I-spec II
FREEWHEEL/CASSETTE
Shimano CS-M7000-11 11-42T
CHAIN
KMC X11
BRAKES (FRONT/REAR)
Shimano XT BR-M8000 hydraulic disc brake 160/160mm
HEAD SET
FSA Orbit 1.5E ZS No.57E
FRONT HUB
DT Swiss 370 Straightpull IS 15x100mm
REAR HUB
DT Swiss 370 Straightpull IS 12x142mm
RIMS
DT Swiss XR 392 28H
SPOKES
Sapim Laser/Race Black
TIRES
Schwalbe Racing Ralph/Rocket Ron Performance 29x2.10"
STEM
ONE Race SuperFlat 31.8mm
HANDLEBAR
ONE Race flat
SEAT POST
ONE Race
SADDLE
Fizik Tundra M5 MG
GEARS
1x11
SIZES
15.5"(S), 17.5"(M), 19"(L), 21"(XL)
BOTTOM BRACKET
Shimano BB-71-41A
REAR SHOCk
DT Swiss X313 remote L.O.
grip/tape
ESI Racer's Edge silicone grips
RACE/SPORT/COMFORT
100%
FRAME SIZE 15.5"(S) 17.5"(M) 19.0"(L) 21.0"(XL)
Recommended body size 15.5"(S) : 160-170cm 17.5"(M) : 170-180cm 19.0"(L) : 180-190cm 21.0"(XL) : 190-200cm
A SEAT TUBE LENGTH (mm) 15.5"(S) : 393 17.5"(M) : 431 19.0"(L) : 482 21.0"(XL) : 533
B EFFECTIVE TOP TUBE LENGTH (mm) 15.5"(S) : 584 17.5"(M) : 602 19.0"(L) : 626 21.0"(XL) : 640
C SEAT TUBE ANGLE 15.5"(S) : 74.2° 17.5"(M) : 74.2° 19.0"(L) : 74.2° 21.0"(XL) : 74.2°
D HEAD TUBE ANGLE 15.5"(S) : 70.5° 17.5"(M) : 71° 19.0"(L) : 71° 21.0"(XL) : 71.5°
E CHAINSTAY LENGTH (mm) 15.5"(S) : 430 17.5"(M) : 430 19.0"(L) : 430 21.0"(XL) : 430
G HEAD TUBE LENGTH (mm) 15.5"(S) : 100 17.5"(M) : 110 19.0"(L) : 120 21.0"(XL) : 130
BBd BB DROP (mm) 15.5"(S) : 40 17.5"(M) : 40 19.0"(L) : 40 21.0"(XL) : 40
BB BB SHELL SIZE Press Fit 92mm
SC SEAT CLAMP DIAMETER (mm) 15.5"(S) : 34.9 17.5"(M) : 34.9 19.0"(L) : 34.9 21.0"(XL) : 34.9
SP SEAT POST DIAMETER (mm) 15.5"(S) : 31.6 17.5"(M) : 31.6 19.0"(L) : 31.6 21.0"(XL) : 31.6
FD FRONT DERAILLEUR DIAMETER (mm) Diect mount E-type / Side Swing
RS REAR SHOCK LENGTH (mm) 15.5"(S) : 165 17.5"(M) : 165 19.0"(L) : 165 21.0"(XL) : 165
RST REAR SHOCK TRAVEL (mm) 15.5"(S) : 38 17.5"(M) : 38 19.0"(L) : 38 21.0"(XL) : 38
HS HEAD TUBE SIZE BC 1-1/8"x1.5" / FSA NO.57/ACB; Orbit ZS
REAR SHOCK HARDWARE Body HW – 14.1mm *8mm; - Shaft HW – 25.4*8
SEATPOST LENGTH (mm) 15.5"(S) : 400 17.5"(M) : 400 19.0"(L) : 400 21.0"(XL) : 400
STEM LENGTH (mm) 15.5"(S) : 60 17.5"(M) : 80 19.0"(L) : 90 21.0"(XL) : 100
HANDLEBAR WIDTH (mm) 15.5"(S) : 685 17.5"(M) : 700 19.0"(L) : 700 21.0"(XL) : 700
CRANK LENGTH (mm) 15.5"(S) : 170 17.5"(M) : 175 19.0"(L) : 175 21.0"(XL) : 175
